COMPLETE CRANE
PRODUCT MATRIX
A structured crane product hub covering overhead cranes, gantry cranes, electric and pneumatic hoists, and jib crane systems from 0.5T to 500T.
What products are in the HAOKCRANES crane product center?
HAOKCRANES supplies overhead cranes, gantry cranes, electric and pneumatic hoists, jib cranes, and engineered special lifting systems. Buyers can compare crane families by capacity, span, lifting height, working environment, control requirements, and site layout before shortlisting the right series for an engineered quotation.
FULL PRODUCT MATRIX
Compare crane families by capacity, structure, working environment, and application to shortlist the right lifting system for your project.
Single Girder Overhead Crane
Lightweight indoor bridge crane series for workshops, warehouses, assembly lines, and facilities with limited headroom.
Double Girder Overhead Crane
Heavy-duty overhead lifting series for steel processing, machinery manufacturing, metallurgy, and high-frequency production.
Electric Hoist & Pneumatic Crane
Wire rope hoists, European hoists, hoist trolleys, and pneumatic lifting units for crane systems and hazardous areas.
Single Girder Gantry Crane
Cost-effective gantry crane series for outdoor yards, loading areas, construction sites, and flexible material handling.
Double Girder Gantry Crane
High-capacity gantry crane series for shipyards, ports, precast yards, container terminals, and infrastructure projects.
Jib Crane
Wall-mounted, pillar, portable, and balance crane options for workstation lifting, machining, assembly, and maintenance.
VIEW CUSTOM ENGINEERED
SERIES
Technical Parameter Matrix
Side-by-side comparison to quickly locate the ideal model for your project.
| Series Model | Capacity | Span Range | Environment | Control Method | Price Tier | Key Features |
|---|---|---|---|---|---|---|
| Single Girder Overhead | 1 ~ 20t | Up to 35m | Indoor workshop | Pendant / Remote | ●●●●● | Economical bridge crane for common factory lifting |
| Double Girder Overhead | 5 ~ 320t | Up to 40m | Heavy industry | Remote / Cabin | ●●●●● | High rigidity, high duty, optional special configurations |
| Electric Hoist & Pneumatic | 0.5 ~ 80t | Hoist / trolley | Crane system / hazardous area | Pendant / Remote | ●●●●● | Core lifting mechanism for overhead, gantry, and monorail systems |
| Single Girder Gantry | 1 ~ 32t | Up to 50m | Outdoor yard | Pendant / Remote | ●●●●● | Cost-effective outdoor lifting without full workshop runway |
| Double Girder Gantry | 5 ~ 500t | Up to 50m | Port / shipyard / precast | Remote / Cabin | ●●●●● | Heavy outdoor lifting for large spans and high capacities |
| Jib Crane | 0.5 ~ 5t | 180 / 360 deg | Workstation | Manual / Electric | ●●●●● | Compact local lifting for machining, assembly, and maintenance |
Application Scenarios
From supplying equipment to delivering full-scenario lifting solutions.
16 YEARS OF CRANE
MANUFACTURING EXCELLENCE
Since 2010, HAOKCRANES has focused on engineered crane systems, manufacturing control, and global project support for demanding industrial lifting applications.
- A-Class Special Equipment Manufacturing License
- ISO9001, CE, SGS International Certifications

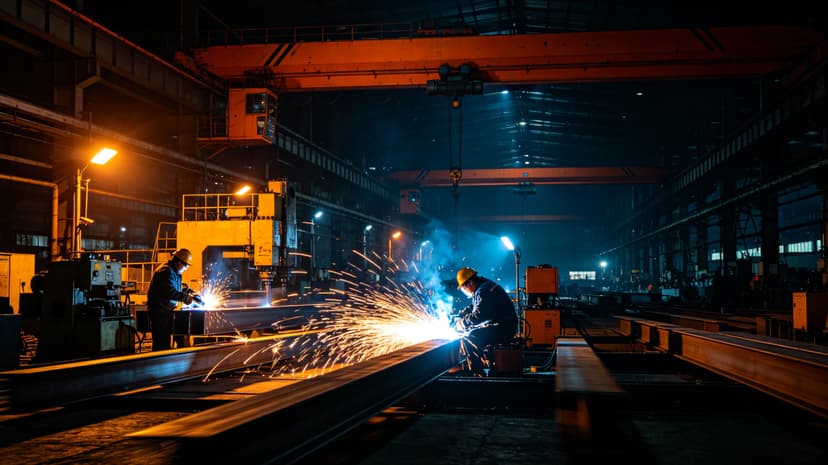

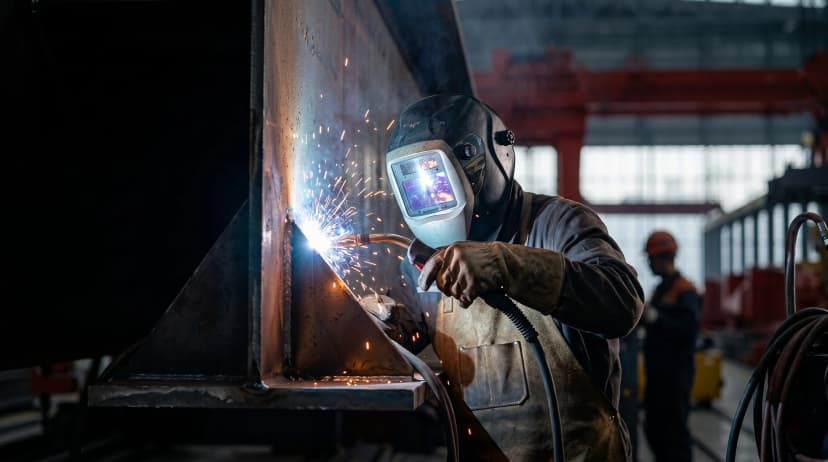

- 150,000 sqm Smart Manufacturing Base
- National Industry Association Board Member
Global Delivery Records
Proven track records of improving material handling efficiency worldwide.
Southeast Asia Cross-Sea Bridge Precast Yard
Utilizing two sets of 100T MG double girder cranes for tandem lifting, withstanding category 12 typhoons.
Major Special Steel Group Scrap Yard
Customized 32T electromagnetic MG crane designed for high thermal radiation environments, operating 24/7.
Middle East Container Terminal Automation
Delivered 4 VFD RTG cranes equipped with advanced anti-sway and auto-positioning systems.
Product Selection Questions
Fast answers for project teams comparing crane families and preparing technical requirements.
How should I choose between overhead crane, gantry crane, hoist, and jib crane systems?
Start with the installation environment. Overhead cranes fit indoor workshops with runway beams, gantry cranes fit yards or sites without full building support, hoists are the lifting mechanism for many crane systems, and jib cranes fit local workstation lifting.
What information is needed for an engineered crane quotation?
The main inputs are rated load, span or working radius, lifting height, duty cycle, travel length, power supply, control preference, workshop or yard layout, operating environment, and any safety or certification requirements.
Can HAOKCRANES customize a crane for a specific plant layout?
Yes. Capacity, span, lifting height, hoist type, speed, control mode, runway configuration, corrosion protection, explosion-proof design, and automation options can be matched to site drawings and process needs.
Which crane series is best for high-capacity outdoor lifting?
Double girder gantry cranes are usually preferred for high-capacity outdoor lifting, especially in shipyards, precast yards, ports, and infrastructure projects where large spans and heavy loads are required.
